Dynomometer checkout
Project description: This test is designed for the initial checkout of the dynomometer
1. Overview goals of test campaign
Checkout of dyno including system integration and initial testing.

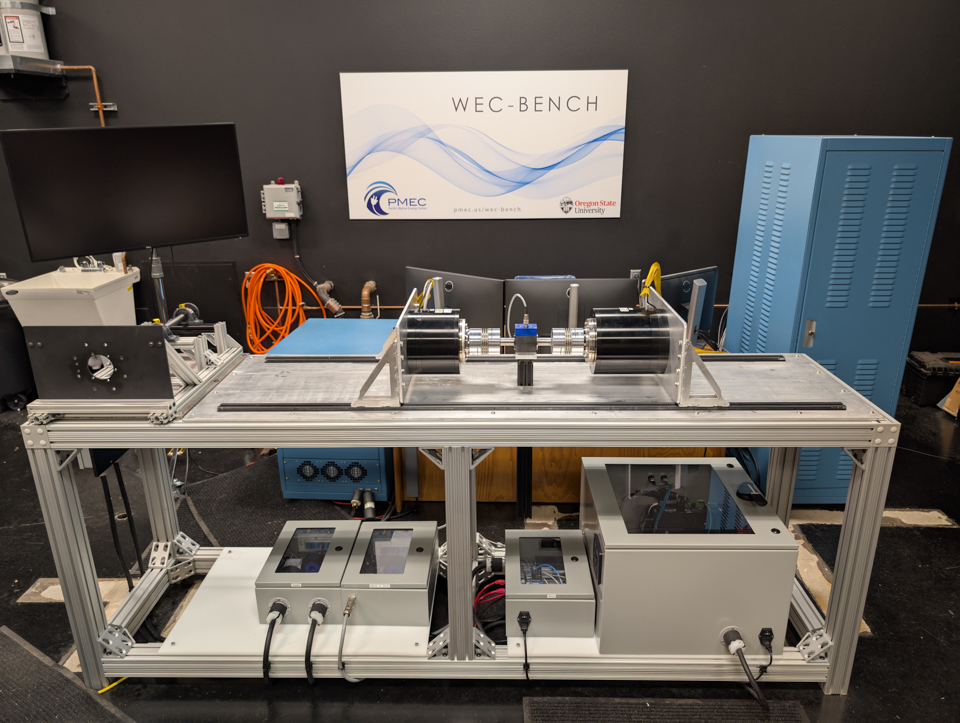

2. Physical setup
- Generator
- M5
- Akribis ADR220-B175-S-K-NH-3.0-FB-RA-26B-P25-Z75
- Renishaw resolute absolute encoder BissC: RA26BBA115B30A
- Motor
- M6
- Akribis ADR220-B235-S-K-NH-3.0-FB-S305-P25-SG
- ERA-S305 absolute encoder: BissC
- Torque Sensor
- HBK 1-T210/200NM
