Pendulum Electrical Power project page

Project description: This test is designed for the initial checkout of the HBM power analyzer

1. Overview goals of test campaign

Initial checkout of HBM power analyzer measuring electrical power between the utility and drive and between the drive and motor.

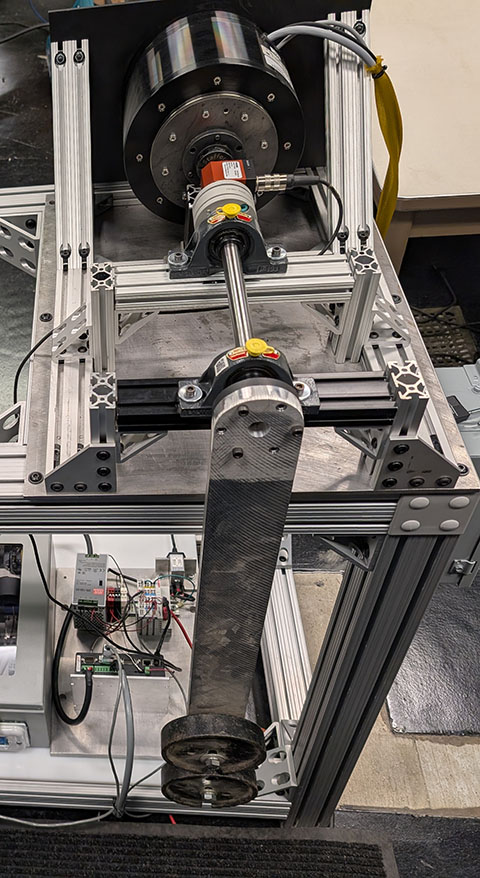

2. Mechanical system overview

• Motor
  • M5
  • Akribis ADR220-B175-S-K-NH-3.0-FB-RA-26B-P25-Z75
  • Renishaw resolute absolute encoder BissC: RA26BBA115B30A
• Torque Sensor
  • FUTEK TRS300 FSH1989
• Pendulum
  • Mass 9.40 Kg
  • COM 0.628 m from rotation point

3. Electrical measurement overview

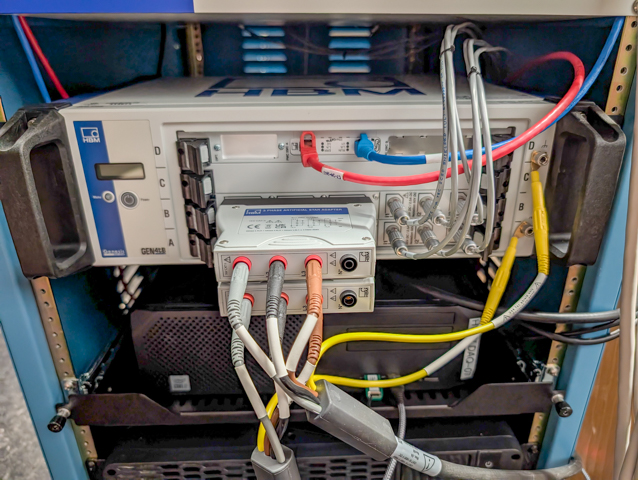

• Power Analyzer
  • HBK Genesis GEN4tB
• Current Transducers

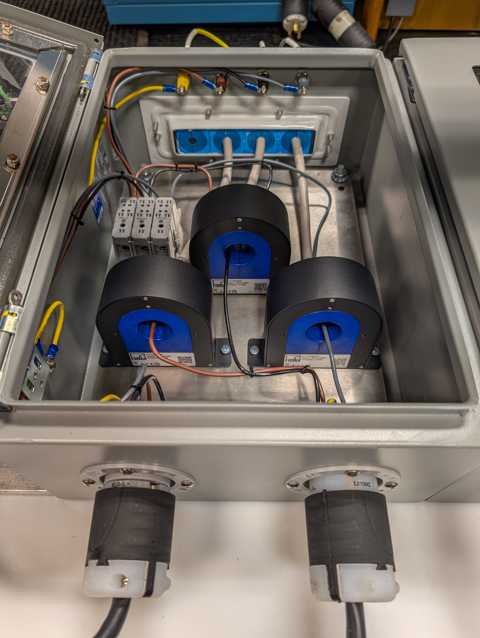

  • Input power 208 VAC three phase

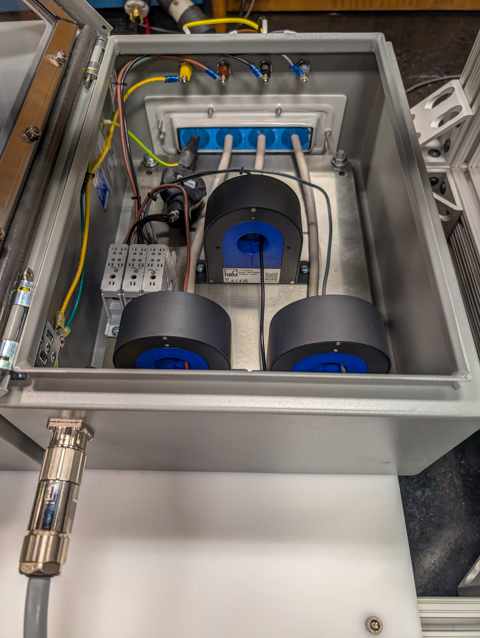

  • Drive to motor
